◆緊湊
◆扁平設計
◆空氣流動性好
◆溫度安全保護開關
◆導軌安裝

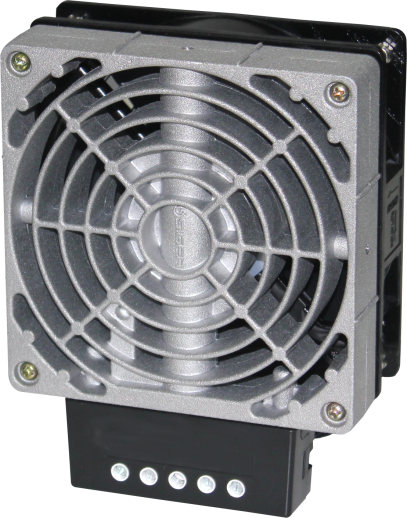

緊湊型高性能風機加熱器可預防凝露的形成，該產品有不帶風機式加熱器，型號為THV 031，也有帶風機式的，型號為THL 031。
TIBOX加熱器的技術參數(shù)
THV 031 | Heater without fan(fan mounting kit included) |
THL031 | Heater with fan |
Heating element type | High performance cartridge |
Temperature safety cut-out | To protect against overheating in case of fan failure automatic reset |
Heater body | Die-cast aluminium(glass bead blasted) |
| Axial fan,ball bearing | Airflow see table， Service life 50,000h at 25℃（77°F） |
| Connection | 3-pole screw connector 2.5mm2,clamping torque 0.8Nm max. |
| Connection casing | Plastic according to UL94 V-0,black |
| Mounting | Clip for 35mm DIN rail,EN60715 |
| Fitting position | Vertical airflow(air outlet up) |
| Operating temperature | -45 to +70(-49 to +158)℃（°F） |
| Storage temperature | -45 to +70(-49 to +158)℃（°F） |
| Protection type/Prothection class | IP20/I(Earthed) |
| Connection(Axial fan)???? | 2-pole screw connector 2.5mm2（L2/N2） |
產品訂貨號

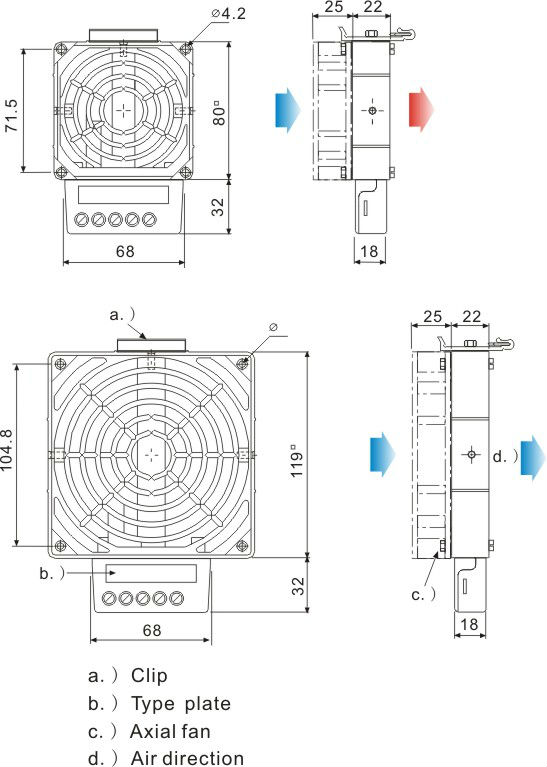

訂貨號 230VAC,50/60HZ | 訂貨號 120VAC,50/60HZ | 加熱功率（W） | 預保險絲（T）230VAC | 預保險絲（T）120VAC | 小氣流，自由流動 | 尺寸（mm） | 重量（KG） |
| THV031000 | THV031009 | 100 | 1.0A | 1.4A | / | 80*112*22 | 0.4 |
| THV031010 | THV031019 | 150 | 1.25A | 2A | / | 80*112*22 | 0.4 |
| THV031100 | THV031109 | 200 | 1.4A | 2.5A | / | 119*151*22 | 0.5 |
| THV031110 | THV031119 | 300 | 2A | 4A | / | 119*151*22 | 0.5 |
| THV031120 | THV031129 | 400 | 4A | 5A | / | 119*151*22 | 0.5 |
| THL031000 | THL031029 | 100 | 1.0A | 1.4A | 35m3/h | 80*112*47 | 0.6 |
| THL031010 | THL031039 | 150 | 1.25A | 2A | 35m3/h | 80*112*47 | 0.6 |
| THL031100 | THL031139 | 200 | 1.4A | 2.5A | 108m3/h | 119*151*47 | 0.9 |
| THL031110 | THL031149 | 300 | 2A | 4A | 108m3/h | 119*151*47 | 0.9 |
| THL031120? | THL031159 | 400 | 4A | 5A | 108m3/h | 119*151*47 | 0.9 |
